4-sided refrigerated display cabinet for storage or service of wine


CALICE DISPLAY CASE
Ref. : ACI-CAL653 (CV180V)

4-sided refrigerated display cabinet for storage or service of wine
Calice wine cabinet
  • Temperature number : 1 or Multi-Temperatures
  • Range of adjustment : Adjustable from 6 to 16°C or staggered between 6 and 18°C
  • Capacity of the model : 120 bottles
  • Level of range : Upscale and refined
  • Model colour : Available in 220 colours
  • Dimensions : H1885*W850*D500 mm
  • Installation temperature min / max : 18°C/25°C

Product no longer
manufactured
Have a question?
Need some advice?
Contact us

Your product's options:

1 Frame colour

Hide the option

RAL color matt
150,00 €
RAL 1000RAL 1001RAL 1002RAL 1003RAL 1004RAL 1005RAL 1006RAL 1007RAL 1011RAL 1012
RAL 1013RAL 1014RAL 1015RAL 1016RAL 1017RAL 1018RAL 1019RAL 1020RAL 1021RAL 1023
RAL 1024RAL 1026RAL 1027RAL 1028RAL 1032RAL 1033RAL 1034RAL 1035RAL 1036RAL 1037
RAL 2000RAL 2001RAL 2002RAL 2003RAL 2004RAL 2005RAL 2007RAL 2008RAL 2009RAL 2010
RAL 2011RAL 2012RAL 2013RAL 3000RAL 3001RAL 3002RAL 3003RAL 3004RAL 3005RAL 3007
RAL 3009RAL 3011RAL 3012RAL 3013RAL 3014RAL 3015RAL 3016RAL 3017RAL 3018RAL 3020
RAL 3022RAL 3024RAL 3026RAL 3027RAL 3028RAL 3031RAL 3032RAL 3033RAL 4001RAL 4002
RAL 4003RAL 4004RAL 4005RAL 4006RAL 4007RAL 4008RAL 4009RAL 4010RAL 4011RAL 4012
RAL 5000RAL 5001RAL 5002RAL 5003RAL 5004RAL 5005RAL 5007RAL 5008RAL 5009RAL 5010
RAL 5011RAL 5012RAL 5013RAL 5014RAL 5015RAL 5017RAL 5018RAL 5019RAL 5020RAL 5021
RAL 5022RAL 5023RAL 5024RAL 5025RAL 5026RAL 6000RAL 6001RAL 6002RAL 6003RAL 6004
RAL 6005RAL 6006RAL 6007RAL 6008RAL 6009RAL 6010RAL 6011RAL 6012RAL 6013RAL 6014
RAL 6015RAL 6016RAL 6017RAL 6018RAL 6019RAL 6020RAL 6021RAL 6022RAL 6024RAL 6025
RAL 6026RAL 6027RAL 6028RAL 6029RAL 6032RAL 6033RAL 6034RAL 6035RAL 6036RAL 6037
RAL 6038RAL 7000RAL 7001RAL 7002RAL 7003RAL 7004RAL 7005RAL 7006RAL 7008RAL 7009
RAL 7010RAL 7011RAL 7012RAL 7013RAL 7015RAL 7016RAL 7021RAL 7022RAL 7023RAL 7024
RAL 7026RAL 7030RAL 7031RAL 7032RAL 7033RAL 7034RAL 7035RAL 7036RAL 7037RAL 7038
RAL 7039RAL 7040RAL 7042RAL 7043RAL 7044RAL 7045RAL 7046RAL 7047RAL 7048RAL 8000
RAL 8001RAL 8002RAL 8003RAL 8004RAL 8007RAL 8008RAL 8011RAL 8012RAL 8014RAL 8015
RAL 8016RAL 8017RAL 8019RAL 8022RAL 8023RAL 8024RAL 8025RAL 8028RAL 8029RAL 9001
RAL 9002RAL 9003RAL 9004RAL 9005RAL 9006RAL 9007RAL 9010RAL 9011RAL 9016RAL 9017
RAL 9018RAL 9022RAL 9023

2 Color of the product

See the option

White
Free

Incompatible avec l'option

White
Black
Free

Incompatible avec l'option

Black
Wengé Effect
Free

Incompatible avec l'option

Wengé Effect
Cherry Effect
Free

Incompatible avec l'option

Cherry Effect
Painted Naturel Effect
Free

Incompatible avec l'option

Painted Naturel Effect

3 Light

See the option

Warm white LED
95,00 €

Incompatible avec l'option

Warm white LED
Standard : White LED
Free
Colored LED
240,00 €

Incompatible avec l'option

Colored LED

4 Antifog system

See the option

Standard : Without Antifog system
Free
Option : With antifog system (402)
460,00 €
Quantity :

Share this product

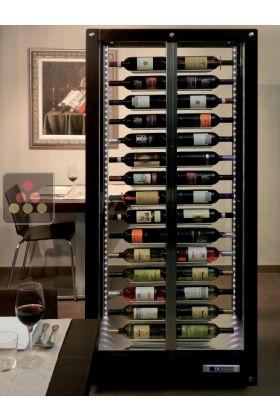

The wine cabinet CALICE DISPLAY CASE ACI-CAL653 (CV180V) final display :

4-sided refrigerated display cabinet for storage or service of wine

Our advice

Our advice for installation

  • Install your wine cabinet on a level surface and in a dry and well ventilated position
  • Ensure that air flow is not obstructed
  • The wine cabinet height is fitted with adjustable height feet

Our advice for usage

  • Maintain the installation temperatures advised by the manufacturer

Our advice for security

  • Ensure the product is connected to an earthed electricity supply
  • Never tilt the cabinet by more than 45 degrees

Technical data

General features :

Capacity of the model :
120 bottles
Capacity min / max :
120 / 120 bottles
Level of range :
Upscale and refined
Door version :
Glazed
Model colour :
Available in 220 colours
Installation temperature min / max :
18°C/25°C
Warranty :
2 years parts, labour and travel

Equipment :

Humidity :
Maintained by condensation on the internal back panel
Hygrometer :
No
Carbon filter :
No
Adjustable feet :
4
Lock :
Yes
Handle :
Yes
Adaptable interior:
No
Alarm :
No
Lighting :
LEDs inside
Switch: on / off:
Yes

Regulation :

Temperature number :
1 or Multi-Temperatures
Range of adjustment :
Adjustable from 6 to 16°c or staggered between 6 and 18°c
Regulation :
Electronic
Thermometer :
Digital
Setting :
Exterior
Display :

Technologies :

Cold production :
Cold generated by compressor
Heat production :
No
Winter function :
No
Nature of the side walls :
UV treated Double glazed panes
Type of back wall :
Aluminium
Type of cladding:
Solid wood and glass
No vibration :
Compressor mounted on anti-vibration damper
Type of gas :
R134A
Electrical power (w) :
230

Dimensions :

Dimensions :
H1885*W850*D500 mm
Net weight :
115 kg
Packaging dimensions :
H2060*W1100*D800 mm
Gross weight :
135 kg
Volume :
1.81 m3
Origin of manufacture:
Europe Europe

The information may contain technical inaccuracies or typographical errors. They are not contractual and are subject to change without notice.
