2 temperaturte air conditioner for natural wine cellar 5660W - Doble under-ceiling evaporators - Cold, humidifier and heating

FRIAX SPECIAL SPLIT SYSTEM EVPL
Ref. : ACI-FRX4122-SP

2 temperaturte air conditioner for natural wine cellar 5660W - Doble under-ceiling evaporators - Cold, humidifier and heating

Temperature number : 2
Range of adjustment : Adjustable between 8° and 16°C
Capacity of the model : 2*122 m3
Level of range : Upscale and refined
Model colour : Group: Light grey / Evaporator: Anthracite
Dimensions : H840/210*W1027/790*D424/440 mm
Installation temperature min / max : -15°C / 40°C

Description générale

Technical data

Price on demand

Your product's features :

Set drain water pump :

To be defined

Water pressure limiter :

To be defined

Wine Supervisor kit :

To be defined

Share this product

Your product's options:

1 Set drain water pump

Hide the option

Without pump

Incompatible avec l'option

Without pump

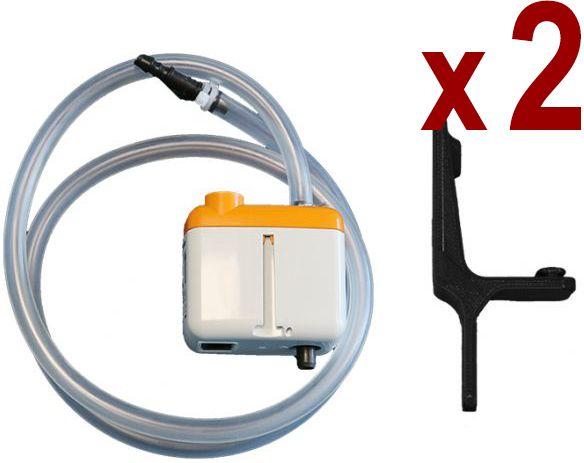

With 2 drain water pump

Incompatible avec l'option

With 2 drain water pump

2 Water pressure limiter

See the option

Without limiter kit

Incompatible avec l'option

Without limiter kit Humidifier water inlet pressure must not exceed 2.8 bar

Doble secure connection kit for humidifier

Incompatible avec l'option

Doble secure connection kit for humidifier Included x 2 : 10m 1/4" polyethylene flexible tubing, 1x overflow safety valve, 1x isolation valve 1/4" 1/4", 1x pressure limiter valve 1/4", 3x 1/4" JG - 3/4" F connection, 1x Y 1/4" 1/4" 1/4"

3 Wine Supervisor kit

See the option

Remote control

Incompatible avec l'option

Remote controlThe air conditionner is equipped with a remote control enabling to consult the cellar constants and to modify the settings. The scope of the remote control depends on the number of walls and thickness. Around 100m on open field

Modbus connection to home automation

Synchronization between the air conditionner and your home automation or the supervision of your store via a Modbus communication protocol. Includes a wireless router to radio frequency RS485 and a 230V/mini-USB power supply.

Incompatible avec l'option

Modbus connection to home automationSynchronization between the air conditionner and your home automation or the supervision of your store via a Modbus communication protocol. Includes a wireless router to radio frequency RS485 and a 230V/mini-USB power supply.

Mobile App access V3

A dedicated mobile application enables you to monitor the 2 temperature of your wine cellar whereever you are : remote control of the air conditionner settings, constants records, real-time alerts, reproduction of natural cellars profiles

Incompatible avec l'option

Mobile App access V3A dedicated mobile application enables you to monitor the 2 temperature of your wine cellar whereever you are : remote control of the air conditionner settings, constants records, real-time alerts, reproduction of natural cellars profiles

Share this product

The wine cabinet FRIAX SPECIAL SPLIT SYSTEM EVPL ACI-FRX4122-SP final display :

Technical data

General features :

Capacity of the model :

2*122 m3

Level of range :

Upscale and refined

Split System

Model colour :

Group: Light grey / Evaporator: Anthracite

Installation temperature min / max :

-15°C / 40°C

Warranty :

1 year parts, labour and return to factory

Equipment :

Humidity :

Hygrometer :

Yes

Alarm :

Yes

Switch: on / off:

Yes

Regulation :

Temperature number :

Range of adjustment :

Adjustable between 8° and 16°c

Regulation :

Electronic

Setting :

Display :

Digital with wireless remote control

Technologies :

Cold production :

By compressor

Heat production :

Yes

Heat trigger :

Automatic

Winter function :

Yes

No vibration :

Compressor mounted on anti-vibration damper

Type of gas :

R452A

5660 W

Type of gas :

R452A

Performance :

Noise level (dBA) :

Dimensions :

H840/210*W1027/790*D424/440 mm

Net weight :

110 kg

840 * 1027 * 424 mm / 82 kg

230 * 790 * 440 mm / 14 kg

Packaging dimensions :

H1200*W1600*D1200 mm

Gross weight :

130 kg

Volume :

2.3 m³

Origin of manufacture:

France

The information may contain technical inaccuracies or typographical errors. They are not contractual and are subject to change without notice.
